Spider

adjustable ...

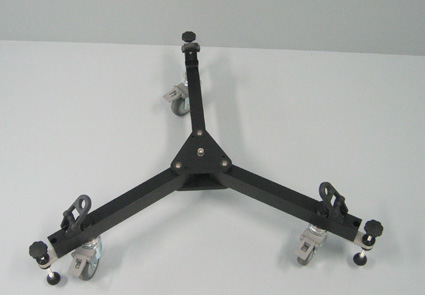

Spider on castors «Spider is a heavy duty  three legged dolly, castors with total locking brakes mounted, designed to support the Jix for using on the studio floor.

The quick "on-off " levelling jack system offers you extra stability on studio floor and on location.

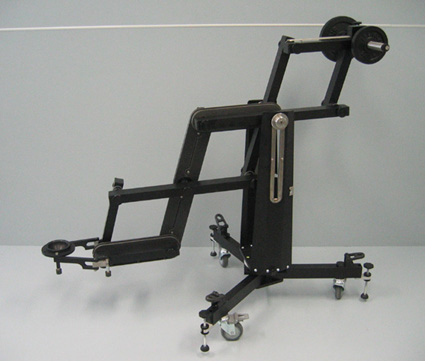

Jix on Spider « Jix on Spider



tripod on spider Spider can also accept  track- wheels, and is adjustable in width to fit on Inflatable-Track or any other metal track.





«Tripod on Spider



spider with Jix bowl and raiser set «On the top-mountingplate the Ø 100 mm Jix bowl can be fixed to make low camera shots.

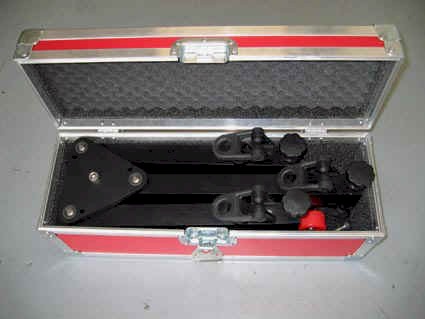

spider in flightcase « Flightcase contains :

> Spider / tripod mounting / quick "on - off " levelling jacks

> 3 total locking brake castors

> 3  track wheel sets

>  Jix bowl raiser set

> tools

Dimensions cm inch Weights Kg lb.
Flightcase L x W x H 62 x 21 x 24 24½x 8½ x 9½ Spider set in flightcase 13 29


                        Pallada  Spider
