foldable....   specs

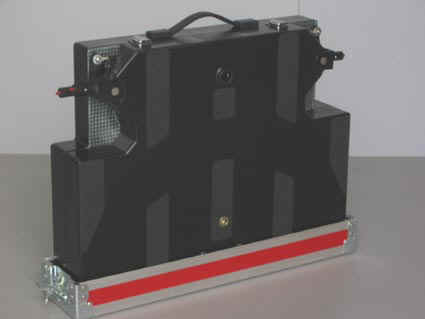

dolly in flightcasebottom

The Pallada foldable Dolly is a high-tech product designed for the cameraman who needs to travel light  and always wants to have a dolly available.

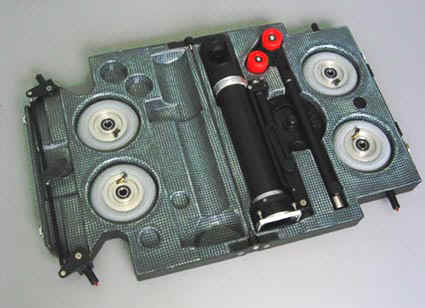

Dolly is folded a case containing all accessories:

  > 4 pneumatic wheels

  > central column with rotating seat

  > pull - push bar with handle

dolly unfolded Dolly is made of black anodised aluminium and high-tech carbon -/ glass fibres. In 2005  we start using  pure carbon fibres,this material is stronger and gives the Dolly inside a black surface.

These materials combine a maximum of strength with a minimum of weight.

Dolly  is packed in a red flightcase.

CLICK TO ENLARGE Dolly is a  two wheel steering platform with a central column and a 360 o rotating seat, both adjustable in height.

The column has standard a  100 mm bowl, 150 and 75 adapters are available.

The in length adjustable pull-push bar can be used for pulling and steering or, with track wheels, pushing the Dolly.


dolly with trackwheels on inflatable track Equiped with track wheels Dolly can run on Inflatable - Track and on any standard straight metal track, a steering lock prevents the front axles to move.

For using Dolly on curved standard metal track,a special track wheel set is available.

The "Click-on Click-off " axle device ensures you a quick change of both pneumatic- and track wheels.

Dolly can also accept the Jix and the HD column.

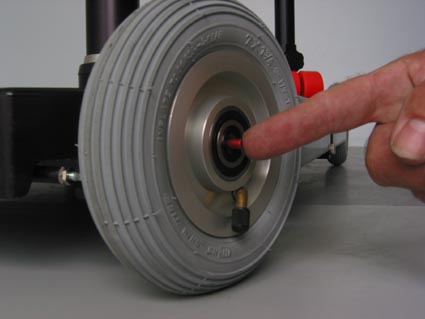

"click-on  click-of " axle Pneumatic wheel on  "Click -on Click -off " axle.






Jix on dolly Jix and Dolly on Inflatable -Track.
dolly flightcase Dolly flightcase.
Dimensions cm inch Weights Kg lb.
Dolly   folded LxWxH 50 x 66 x 12 20 x 26 x 4 3/4 Dolly   standard outfit 21 46
Dolly   unfolded LxWxH 100 x 66 x 6 40 x 26 x 2 3/8 Dolly   max.load capacity 150 330
Camera  lens height max. 93 37
Camera  lens height min. 66 26
Flightcase   LxWxH 68 x 50 x 14 27 x 20 x 5 1/2 Flightcase 9 20
